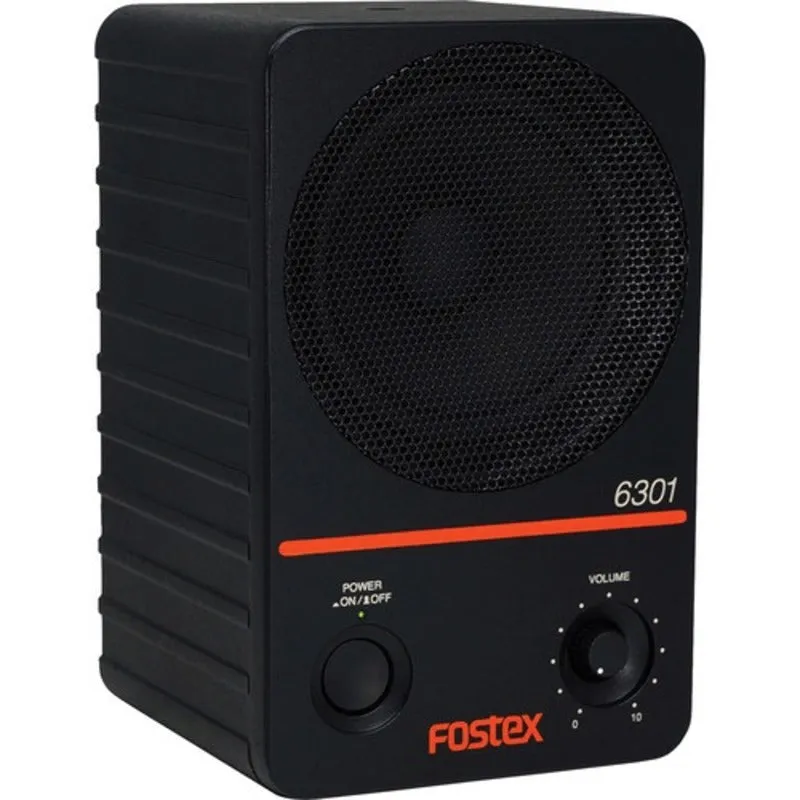

Fostex 6301NE Active Speakers - Compact Pro-Audio Monitoring
The Fostex 6301NE is a compact active monitor designed for high-resolution audio monitoring work at home, in the studio, and in live environments. Featuring a powerful 4" Driver with Class-D Amplifier, XLR Balanced Output, and a compact and robust design, the 6301NE lets you monitor sound in high resolution anywhere you go.
What's In The Box?
- Fostex 6301NE - 4" Active Monitor Speaker 20W D-Class (Single)
- Standard IEC Power Cord
- Limited 1-Year Manufacturer Warranty

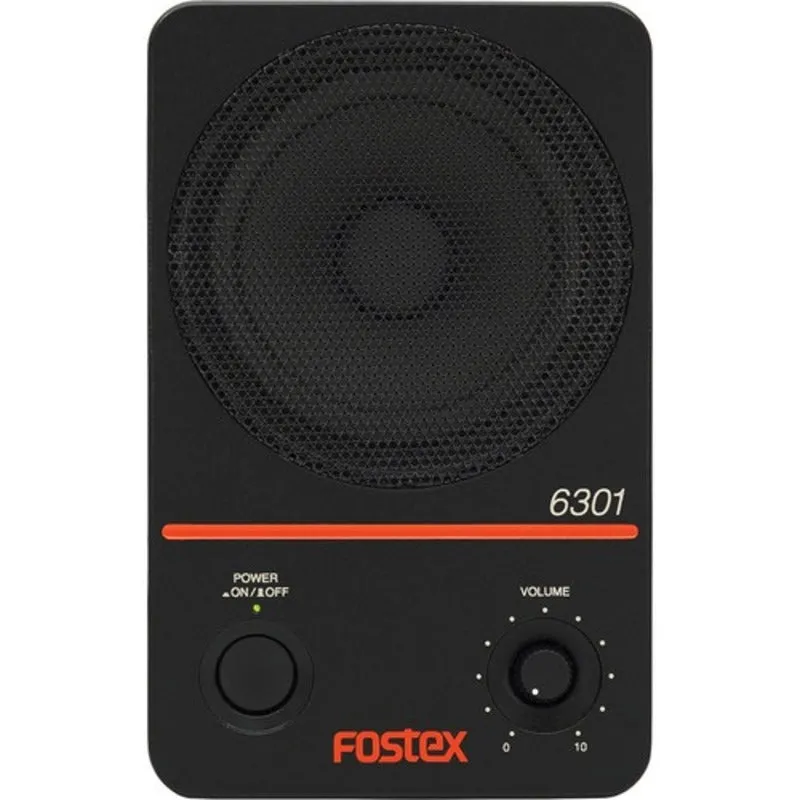

4" Full-Range Driver and 20W Class-D Amp for clean, detailed, and accurate sound
The Fostex 6301NE is specifically tuned to deliver a crisp and clean sound so you can hear sound with unmatched precision. At the front of the 6301NE is the specially-designed 4" Driver for life-like vocals and sparkly treble reproduction. Driving this driver is a powerful 20W Class-D Amplifier, for distortion-free sound even at higher volumes.

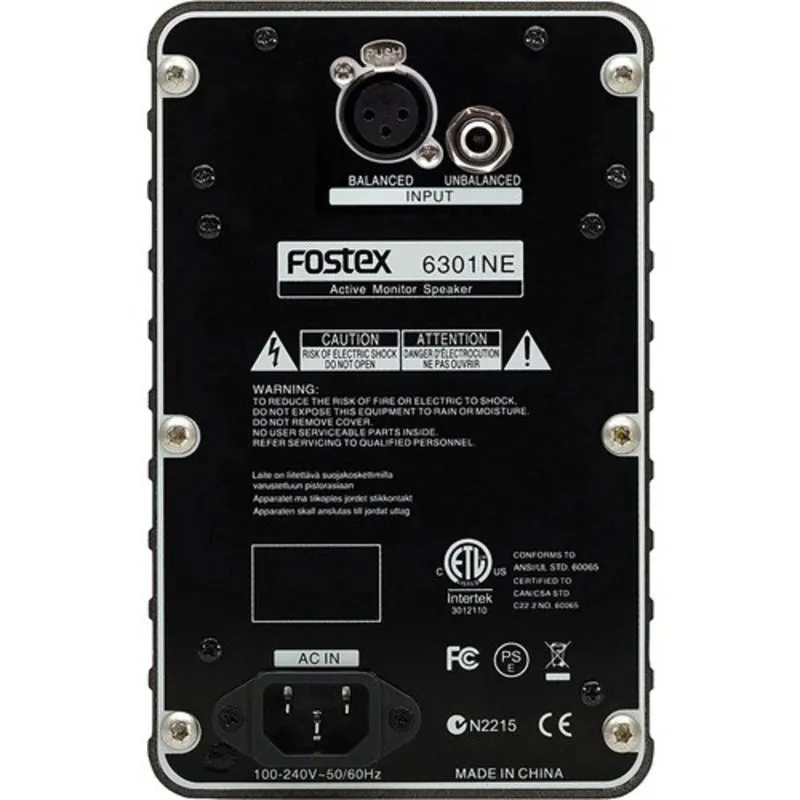

The 6301NX boasts an Electronically-Balanced XLR Input for a robust multi-channel audio setups
The Fostex 6301NE is the 6301 variant you want if you need an XLR Balanced Input.
The electronically balanced XLR delivers noise-free sound and is built tough to withstand multiple connections, so you can enjoy reliable performance for years to come. You can also connect the 6301NE through the 1/4" unbalanced input for quick and easy connections to a wide array of audio interfaces.
The Fostex 6301NE features Protection Circuits and Standby Mode for consistent and reliable audio performance
The Fostex 6301NE is robust inside and out. Built-in protection circuits prevent unexpected overloads or short circuits, so you can enjoy a consistent and reliable sound at home, in the studio, or live events.
The 6301NE active speaker also features an automatic Standby Mode (auto-activates after 25 minutes) so the speakers only use power when needed.
Compact and Robust Design so you can take the 6301NE anywhere with confidence

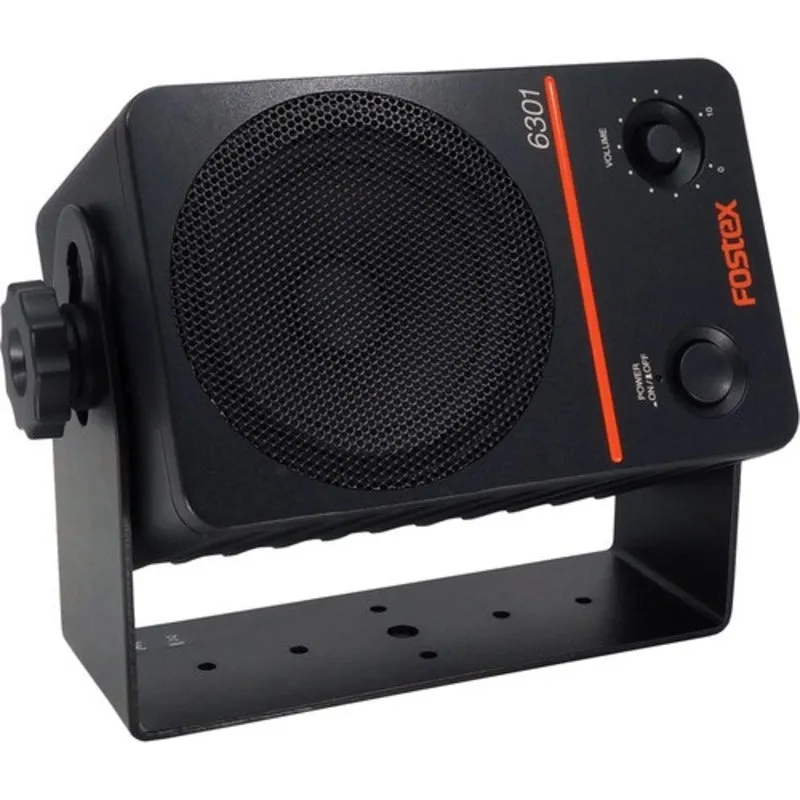

The 6301NE is compact enough to take anywhere. The die-cast aluminum enclosure is tough yet lightweight, so you can set it up anywhere with confidence. Get the optional bracket for the 6301, and create the perfect audio setup no matter the space.
Fostex 6401NE Specs
SPEAKER SECTION
Enclosure Type
Closed type (Material: Aluminum die-cast)
Unit
4" Full-range driver
Frequency Response
70Hz to 15kHz
Sound Pressure Level
85dB/W(1m)
Maximum Sound Pressure Level
98 dB
AMPLIFIER SECTION
Inputs
Connector
XLR-3-31 (electrically balanced)
Input Impedance
10k ohm or more
Rated output
20W
Distortion (T.H.D.)
0.05% (1kHz / 1W output)
Residual Noise
-70dBV or less
Input Sensitivity
XLR: 4dBu (1.2Vr.m.s.)
Auto Stand-by
active after approx. 25 min. of continuous input lower than the threshold level
GENERAL
External Dimensions
120(W)×189(H)×120(D)mm *including maximum projection
Weight
Approx. 2.2 kg
Power Requirement
AC 100 V to 240 V, 50/60 Hz
Power Consumption
10W (less than 0.5W in stand-by mode)
